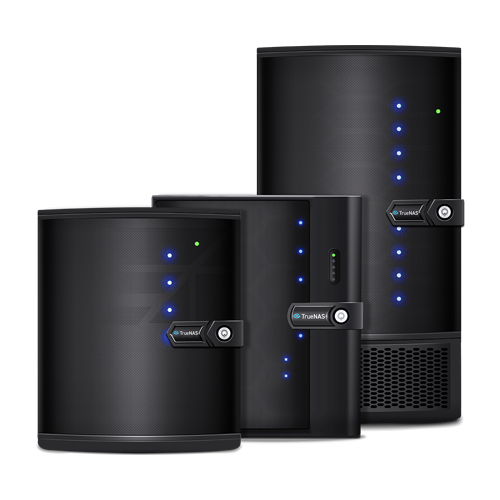

TrueNAS Mini
TrueNAS Mini uses enterprise-class hardware specifically selected to maximize performance with TrueNAS Core.

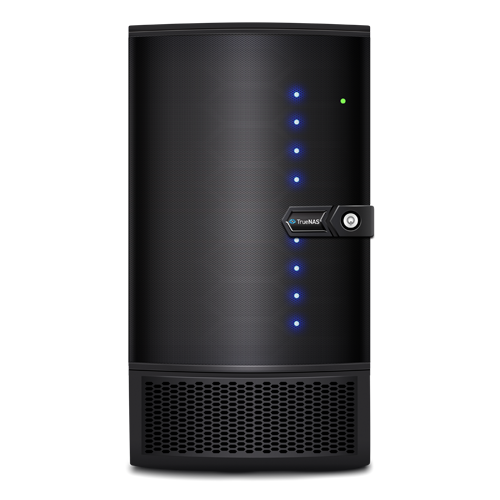

No other system in its class can match the performance of the TrueNAS Mini XL. Plug it in, boot it up, and it runs.
The TrueNAS Mini XL is the new robust and secure solution for an ever-growing demand for digital storage.
Manage your data like a pro
There are many compact NAS options on the market, but only one gives you access to the same tools used by professional storage specialists to back up and share your movies, photos, VMs and files from a single device. Small but mighty, TrueNAS® Minis boast unmatched performance, giving your data the protection and performance it truly deserves.
TrueNAS® Mini-Series - Specifications

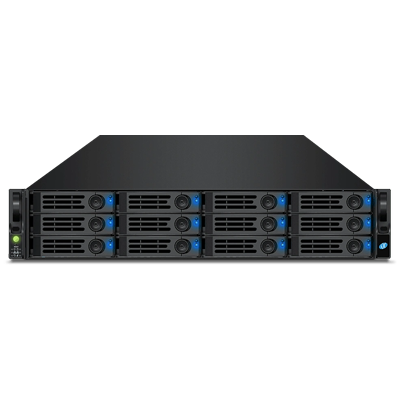

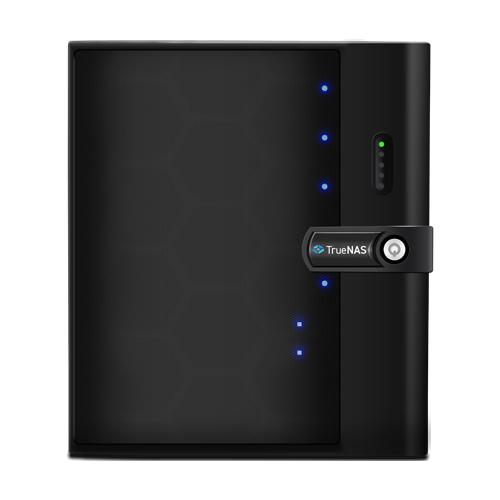

| FEATURES | Mini X | Mini X+ | Mini XL+ | Mini R | |||
|---|---|---|---|---|---|---|---|
| Chassis | 5+2 Bay Enclosure – Super Quiet Design | #colspan# | 8+1 Bay Enclosure – Super Quiet Design | 12 Bay Enclosure – Super Quiet Design | |||
| Drive Bays | 5 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) 2 x SATA 2.5” Hot-Swappable SSD Bays | #colspan# | 8 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) 1 x SATA 2.5” Hot-Swappable SSD Bay 1x SATA 2.5” Internal SSD Bay | 12 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) | |||
| Maximum Raw Capacity | Up to 90 TB | Up to 105 TB | Up to 159 TB | Up to 216 TB | |||
| CPU | Quad-core C3558 Intel CPU | Octa-core C3758 Intel CPU | #colspan# | #colspan# | |||
| Memory | 16 GB DDR4 with ECC (Upgradeable to 32GB) | 32 GB DDR4 with ECC (Upgradeable to 64GB) | #colspan# | #colspan# | |||
| RAID | OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe) | #colspan# | #colspan# | #colspan# | |||
| Disk Management | Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T ISO Mounting Support, Hardware-Accelerated Disk Encryption | #colspan# | #colspan# | #colspan# | |||
| Network | Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000) Dedicated RJ45 IPMI Port (Remote Hardware Management) | Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports Dedicated RJ45 IPMI Port (Remote Hardware Management) 2 x SFP+ 10G Add On Card (Optional) | #colspan# | #colspan# | |||
| USB Ports | 2 x USB 2.0 Ports (Front) 1 x USB 3.0 Port (Rear) | 1 x USB 3.0 Port (Front) 1 x USB 2.0 Port (Front) 2 x USB 2.0 Ports (Rear) | 1 x USB 3.0 Port (Front) 1 x USB 2.0 Port (Front) 2 x USB 2.0 Ports (Rear) | 1 x USB 3.0 Port (Rear) 2 x USB 2.0 Ports (Rear) | |||
| Read/Write Cache | (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG) | #colspan# | #colspan# | #colspan# | |||
| PCIe Expansion | N/A | 1 x PCI Express 3.0 x 4 | #colspan# | #colspan# | |||
| Power Supply | 100V to 240V AC, 50/60 HZ, Single Phase | #colspan# | #colspan# | #colspan# | |||
| Power Consumption (Maximum) | Diskless: 24W With drives: 84W | Diskless: 40W With drives & 10G Add-on-card: 111W | Diskless: 40W, With drives & 10G Add-on-card: 130W | Diskless: 63W, With drives & 10G Add-on-card: 167W | |||
| Power Management | Remote Power-On/Off (IPMI), UPS Signal Response and Alerts | #colspan# | #colspan# | #colspan# | |||
| User Control Interface | Web Browser and Remote Hardware Management (IPMI) | #colspan# | #colspan# | #colspan# | |||
| Dimensions (W x D x H) | 210 x 267 x 241mm | #colspan# | 213 × 279 × 384mm | 437 × 533 × 89mm | |||
| Weight (no drives) | 5.9Kg | #colspan# | 10.5Kg | 8.5Kg | |||
| Limited Warranty | 3-Year Warranty Included. Software Warranty requires registration at portal.ixsystems.com. | #colspan# | #colspan# | #colspan# | |||
| Accessories | Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable | #colspan# | #colspan# | Basic Setup Guide, 2 x bezel keys, bag of HDD screws, 2 x 7 ft cat6 copper cable, Bezel, 4 x Adhesive Rubber Feet Short Rail Kit – 19″ to 26.6″ rackmount depth Optional Long Rail Kit available – 26.5″ to 36.4″ rackmount depth | |||
Infinite Possibilities
Ideal for file sharing, data backup, multimedia processing and distribution, video surveillance, edge/remote office, development, personal cloud and other small/home office and SMB applications.
Ransomware Protection and Data Protection
At the heart of TrueNAS is the enterprise-grade, self-healing OpenZFS file system. Combined with advanced tools like built-in RAID, snapshots, encryption, and Bitrot detection, TrueNAS Minis provide ultimate protection against data loss, corruption, and ransomware.
Shared use
Easily create file shares, set permissions, and perform maintenance from a single web browser. TrueNAS Mini supports all major file and block protocols and is designed to run unobtrusively in any existing home or office environment. Just plug in and go, it just works.
Small but Mighty
Just because a NAS is small doesn’t mean it has to be underpowered. TrueNAS Minis have the hardware power to outperform any compact NAS on the market, and caching SSDs can be added to boost read and write performance even further. All while maintaining high energy efficiency.
More than just storage with plugins and VMs
Extend the capabilities of your Mini with a variety of free plugins with TrueNAS CORE or VMs and containers with TrueNAS SCALE (Help Me Choose) to meet a variety of needs from shared media hosting to private cloud management.
Deduplication
Data deduplication is a process that optimizes disk space usage by avoiding duplicate copies of data. Files are scanned and analyzed for duplicates before they are written to disk. This process is resource intensive and can severely impact performance if the system does not have cache devices or sufficient memory available.
Snapshots and Clones
Create and save snapshots of the entire file system as needed, or schedule the process to reduce overhead. In the event of a malware attack or user error, administrators can roll back the system to an uninfected state, and recovery takes seconds, not days. Snapshots can be replicated to another TrueNAS system to create a remote backup in the event of a fire or catastrophic hardware failure. Users can easily manage, delete, copy, and monitor saved snapshots through the web UI.
Writable snapshots or clones are just as easy to create and allow data and files to be restored. Just like regular snapshots, clones are space-efficient, and only changed files take up storage space.
Encryption
Protect your data from prying eyes – TrueNAS is the first and only open source project to offer encryption on ZFS volumes! Encrypted volumes can only be read by a TrueNAS system that holds the master key for that volume. Rest assured knowing that if you have an old hard drive, no one will be able to access the files as long as the master keys are destroyed. For additional security, an optional passphrase can be enabled to add a layer of security to your entire system.
Copy-on-Write
All blocks in the ZFS file system contain a checksum of the destination block, which is verified when the block is read. Blocks that contain active data are never overwritten. Instead, a new block is allocated and data is written to it. This means that when data is stored, data is never overwritten to ensure data integrity.
Why do we use ZFS?
TrueNAS (formerly FreeNAS), the world’s most popular open source storage operating system, uses the ZFS file system to protect all your important data. ZFS is an enterprise-level open source file system and volume manager that offers unparalleled flexibility and commitment to data integrity. It is a next-generation file system that removes most, if not all, of the limitations of legacy file systems and hardware RAID.
With over 8.5 million downloads, more people have trusted TrueNAS and ZFS to back up their data than any other open source storage software in the world.
More than just storage
Extend the capabilities of your TrueNAS Mini with a variety of free plugins using TrueNAS CORE or VMs and containers using TrueNAS SCALE to meet a variety of needs. From shared media hosting to private cloud management, TrueNAS makes it possible.
