TrueNAS R-Series
TrueNAS R-Series combines the powerful features of ZFS with value-oriented single-controller hardware to deliver the industry’s best value storage.
Available in all-flash and hybrid models, these systems offer excellent density and value with specifications ranging from 10GbE to 100GbE and up to 16 cores and 192GB of RAM.
High-density unified storage devices
Simplify your data management with powerful OpenZFS data management features, including data protection, snapshots, replication, scrubbing, data reduction, and security. Integrating TrueNAS into your workload is easy with support for block, file, and object storage protocols, as well as all major hypervisors and cloud sync services.
All TrueNAS systems are fully compatible and enable secure data replication and migration between each other.
The TrueNAS R-Series is available in three versions: CORE, Enterprise & SCALE.
The TrueNAS Enterprise version is available with Bronze or Silver Enterprise support.
HyperConverged Infrastructure
TrueNAS SCALE enables open source hyperconverged infrastructure with converged compute and storage. Start with a single R-Series node and scale as you grow.
File-Sharing
Eliminate data silos by consolidating and sharing your data on a single platform that seamlessly integrates with all major protocols.
Multimedia
TrueNAS supports block, file and object storage for easy integration and reliable multimedia storage and editing.
Backup
TrueNAS R-Series combines capacity and value with powerful data protection tools to protect up to 5 PB of data on a single appliance.
TrueNAS R-Series in Detail
The TrueNAS R-Series appliance can be installed with any edition of TrueNAS. Choose TrueNAS CORE or Enterprise to use the R-Series for conventional, general-purpose storage, or install SCALE to lay the foundation for a scale-out storage cluster. Start with a single R-Series node and expand as your needs grow.
Contact us for a system design and quote that fits your budget.

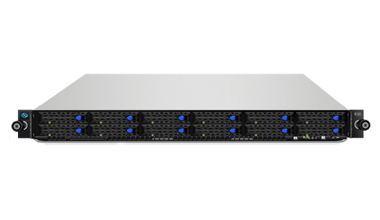

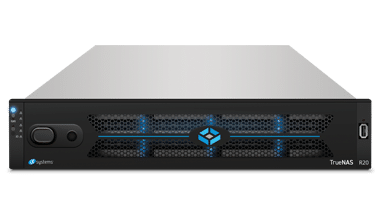

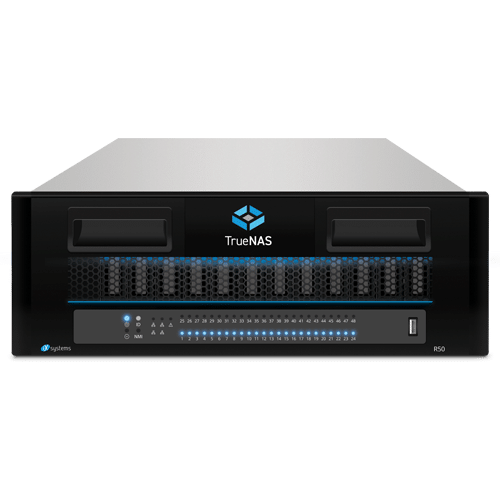

| TrueNAS® | R20 | R30 | R50 | |||
|---|---|---|---|---|---|---|
| Rack Space | 2U | 1U | 4U | |||
| Controllers | Single | Single | Single | |||
| Drive Bays | 12 x 3.5", 2 x 2.5" | 16 x NVMe | 48 x 3.5", 4 x 2.5" (NVMe) | |||
| DRAM per Controller | 32 GB - 192 GB | Up to 1024 GB | 64 GB - 192 GB | |||
| Max Ethernet Speed | 2x 100 GbE | 2x 100GbE oder 4x 10/25/100 GbE | 2x 100 GbE | |||
| Fibre Channel (option) | 2 x 32 Gb | N/A | 2 x 32 Gb | |||
| Expansion Shelves Supported | 2 | 0 | 2 | |||
| Expansion Shelves | ES24/F / ES60 | Not Supported | ES24/F / ES60 | |||
| Max Drives Supported | 132 | 16 | 168 | |||
| Max IOPS | 500K | 600K | 500K | |||
| Max Throughput | 10GB/s | 20GB/s | 10GB/s | |||
| All-Flash | #colspan# | #colspan# | #colspan# | |||
| Max Raw Capacity | 1,29 PB | 240 TB | ||||
| Max Effective Capacity* | 3,22 PB | 300 TB | ||||
| Hybrid Storage (HDD + Flash) | #colspan# | #colspan# | #colspan# | |||
| Write Cache | 2 x 1.6 TB SATA SSD | 2 x 3.2 TB NVMe SSD | ||||
| Read Cache | 2 x 1.6 TB SATA SSD | 2 x 3.2 TB NVMe SSD | ||||
| Max Raw Capacity | 2,37 PB | 3,02 PB | ||||
| Max Effective Capacity* | 5,92 PB | 7,55 PB | ||||
| Certifications | Veeam Ready | #colspan# | #colspan# | |||
TrueNAS R-Series Expansion Shelves
| Model | Drives | Base Unit | Shelves | ES24/ES24F (24-Bay) | ES60 (60-Bay) | ES102 (102-Bay) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TrueNAS R20 | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| R20 (HDD+HDD) | 12 | 264 TB (22 TB HDD) | 2 / 2 / 2 | 528 TB - (22 TB HDD) | 1.32 PB - (22 TB HDD) | 2,24 PB - (22 TB HDD) | ||||||
| R20 Hybrid (SSD+HDD) | 12 | 92,16 TB (7,68 TB SSD) | 2 / 2 / 2 | 528 TB - (22 TB HDD) | 1.32 PB - (22 TB HDD) | 2,24 PB - (22 TB HDD) | ||||||
| R20 Flash (SSD+SSD) | 12 | 92,16 TB (7,68 TB SSD) | 2 / 2 / 2 | 184,32 TB - (7,68 TB SSD) | 406,8 TB - (7,68 TB SSD) | 783,36 TB - (7,68 TB SSD) | ||||||
| TrueNAS R30 | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| R30 (NVMe) | 16 | 245,76 TB (15,36 TB NVMe) | 0 / 0 / 0 | Not Supported | Not Supported | Not Supported | ||||||
| TrueNAS R50 | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| R50 (HDD+HDD) | 48 | 1,05 PB (22 TB HDD) | 2 / 2 / 2 | 528 TB - (22 TB HDD) | 1.32 PB - (22 TB HDD) | 2.24 PB - (22 TB HDD) | ||||||
| R50 Hybrid (SSD+HDD) | 48 | 368,64 TB (7,68 TB SSD) | 2 / 2 / 2 | 528 TB - (22 TB HDD) | 1.32 PB - (22 TB HDD) | 2.24 PB - (22 TB HDD) | ||||||
| R50 Flash (SSD+SSD) | 48 | 368,64 TB (7,68 TB SSD) | 2 / 2 / 2 | 184,32 TB - (7,68 TB SSD) | 460,8 TB - (7,68 TB SSD) | 783,36 TB - (7,68 TB SSD) | ||||||
