Platform
-

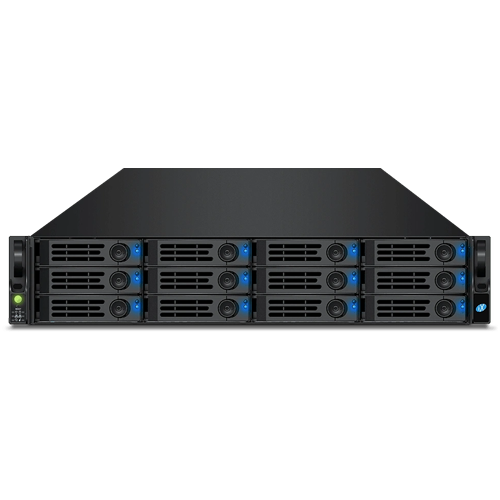

TrueNAS Mini R
-
-
Configuration
-
8 Cores, 32GB Ram, 2x 10Gb
-
8 Cores, 64GB Ram, 2x 10Gb
-
8 Cores, 64GB Ram, 2x 10GSFP+
-
-
Drive Type
-
Empty
-
4TB HDD
-
6TB HDD
-
8TB HDD
-
12TB HDD
-
14TB HDD
-
18TB HDD
-
22TB HDD
-
1.9TB SSD
-
3.8TB SSD
-
7.6TB SSD
-
-
Drive Amount
-
Operating System
-
TrueNAS CORE
-
TrueNAS SCALE
-
-
Accessories
(Optional)
-
Rail Kit
-
Short
-
Long
-
-
Adaptor
-
2.5" Adaptor for SSD
-
-
-
Warranty
-
3 Years
-
-
Import
-
Mini R (EU)
-
Description
TrueNAS® Mini-Series

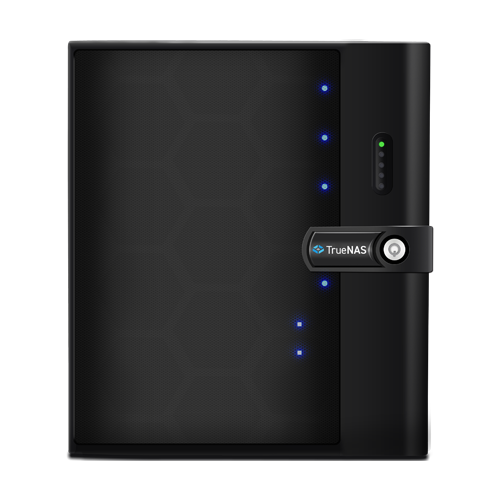

| FEATURES | Mini X | Mini X+ | Mini R | ||
|---|---|---|---|---|---|
| Chassis | 5+2 Bay Enclosure – Super Quiet Design | 12 Bay Enclosure – Super Quiet Design | |||
| Drive Bays | 5 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) 2 x SATA 2.5” Hot-Swappable SSD Bays | 12 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) | |||
| Maximum Raw Capacity | Up to 90 TB | Up to 105 TB | Up to 216 TB | ||
| CPU | Quad-core C3558 Intel CPU | Octa-core C3758 Intel CPU | |||
| Memory | 16 GB DDR4 with ECC (Upgradeable to 32GB) | 32 GB DDR4 with ECC (Upgradeable to 64GB) | |||
| RAID | OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe) | ||||
| Disk Management | Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T ISO Mounting Support, Hardware-Accelerated Disk Encryption | ||||
| Network | Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000) Dedicated RJ45 IPMI Port (Remote Hardware Management) | Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports Dedicated RJ45 IPMI Port (Remote Hardware Management) 2 x SFP+ 10G Add On Card (Optional) | |||
| USB Ports | 2 x USB 2.0 Ports (Front) 1 x USB 3.0 Port (Rear) | 1 x USB 3.0 Port (Front) 1 x USB 2.0 Port (Front) 2 x USB 2.0 Ports (Rear) | 1 x USB 3.0 Port (Rear) 2 x USB 2.0 Ports (Rear) | ||
| Read/Write Cache | (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG) | ||||
| PCIe Expansion | N/A | 1 x PCI Express 3.0 x 4 | |||
| Power Supply | 100V to 240V AC, 50/60 HZ, Single Phase | ||||
| Power Consumption (Maximum) | Diskless: 24W With drives: 84W | Diskless: 40W With drives & 10G Add-on-card: 111W | Diskless: 63W, With drives & 10G Add-on-card: 167W | ||
| Power Management | Remote Power-On/Off (IPMI), UPS Signal Response and Alerts | ||||
| User Control Interface | Web Browser and Remote Hardware Management (IPMI) | ||||
| Dimensions (W x D x H) | 210 x 267 x 241mm | 437 × 533 × 89mm | |||
| Weight (no drives) | 5.9Kg | 8.5Kg | |||
| Limited Warranty | 3-Year Warranty Included. Software Warranty requires registration at portal.ixsystems.com. | ||||
| Accessories | Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable | Basic Setup Guide, 2 x bezel keys, bag of HDD screws, 2 x 7 ft cat6 copper cable, Bezel, 4 x Adhesive Rubber Feet Short Rail Kit – 19″ to 26.6″ rackmount depth Optional Long Rail Kit available – 26.5″ to 36.4″ rackmount depth | |||
